128 CHANNEL NVR, 16 SATA PORT (RAID)

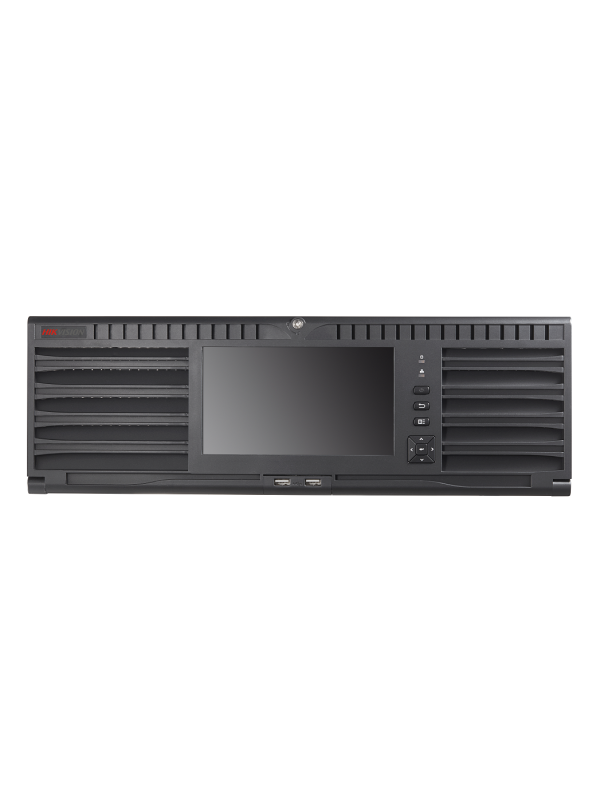

Hikvision 128 CHANNEL NVR, 16 SATA PORT (RAID)
- 128 channel IP camera recording
- 576Mbps recording/512Mbps transfer bandwidth
- up to 12MP live and playback
- H.265+ recording format, HDMI(4K) & VGA monitor output
- 2x USB 2.0, 2x USB 3.0
- 16x SATA port (Each port supports max. 10TB)
- 4x RJ-45 10/100/1000Mbps, optional 4x Gbit fiber input
- ONVIF, Alarm input output, 1 e-SATA
- RAID(0,1,5,6,10), Dual Power support
- I series recorders analysis capable cameras (Thermal, fisheye, person counting, heat map, plate reading)
Video | |
Number of Channels | 128 channel |
Recording Resolution | 12MP/8MP/7MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
Incoming bandwidth | 576Mbps |
Outgoing bandwidth | 512Mbps |
Video Compression | |
Video Compression Format | H.265+,H.265,H.264+,H.264,MPEG4,MJPEG |
Interface Unit | |
Network Interface | 4 RJ45 10M/100M/1000M self-adaptive Ethernet interface |
Number of HDDs | 16 SATA |
HDD Capacity | 10TB |
USB Interface | 2×USB 2.0, 2×USB 3.0 |
Audio In / Out | - |
Alarm Input/ Output | 16/8 |
General Features | |
Power Supply | 100 to 240 VAC, 550W |
Operating Temperature | 0°C to +50°C (32°F to +122°F) |
Dimension | 442 × 494 × 146mm (17.4"×19.4"×5.7") |
Weight | 16kg (35.3lb) |
